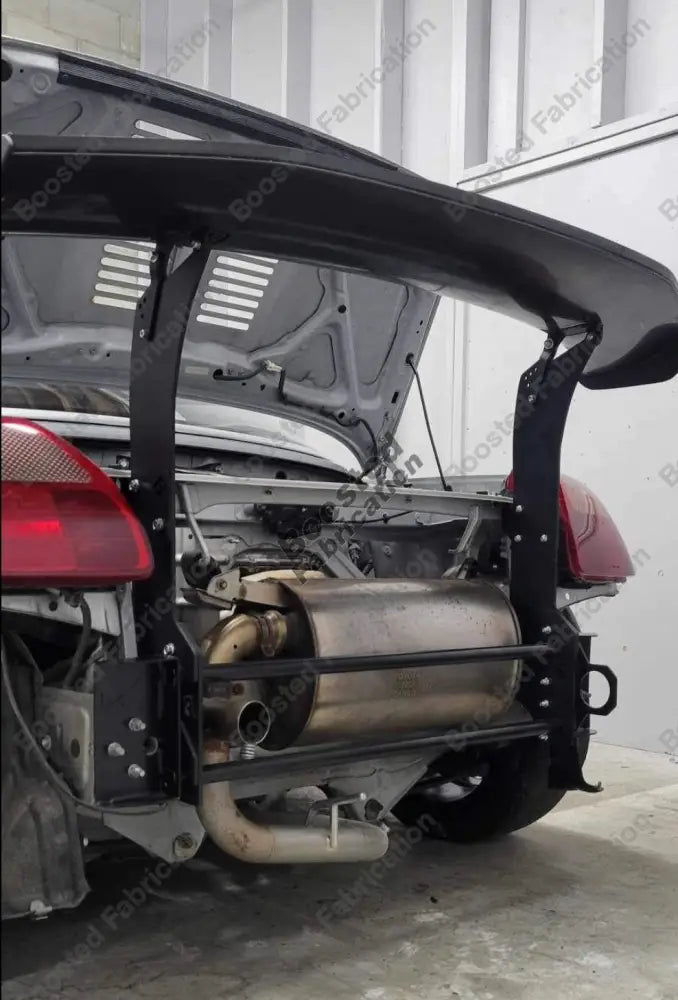

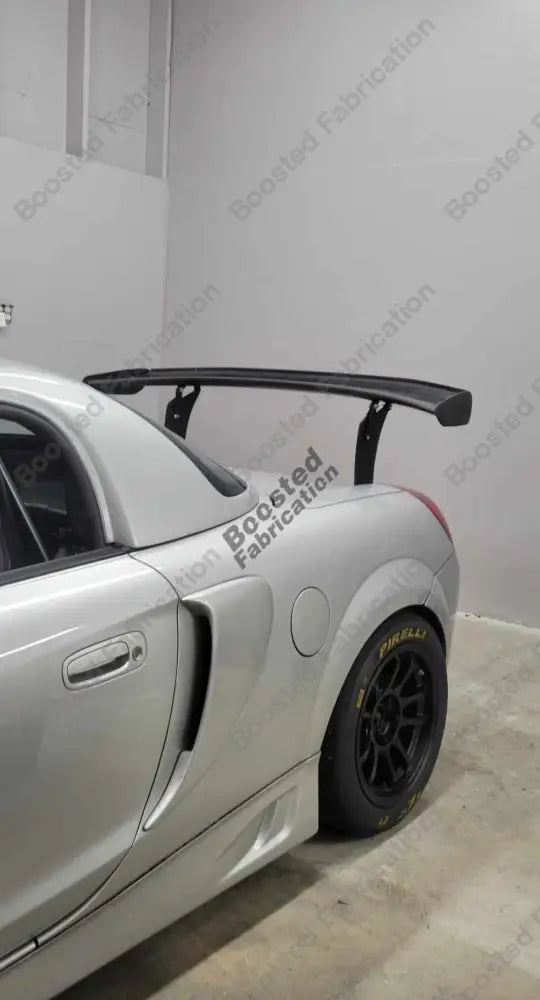

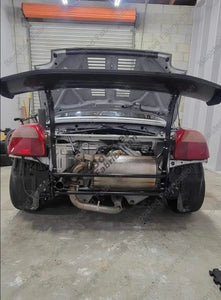

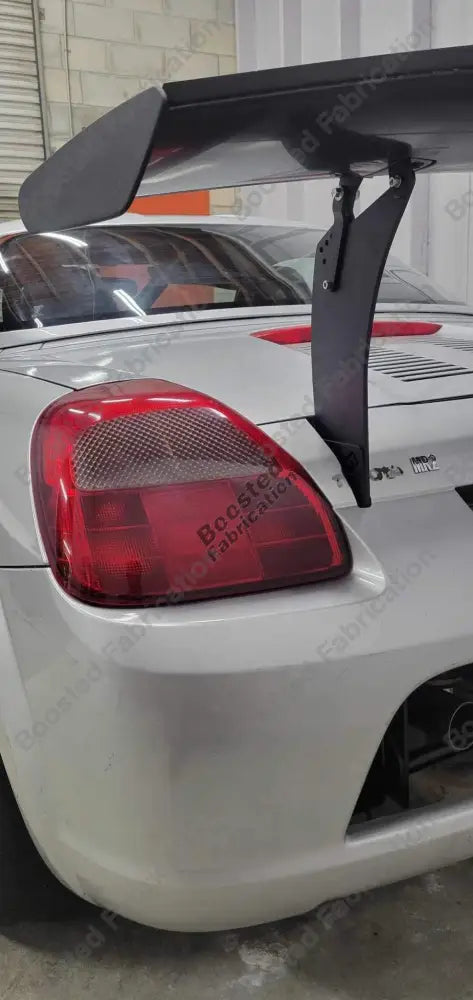

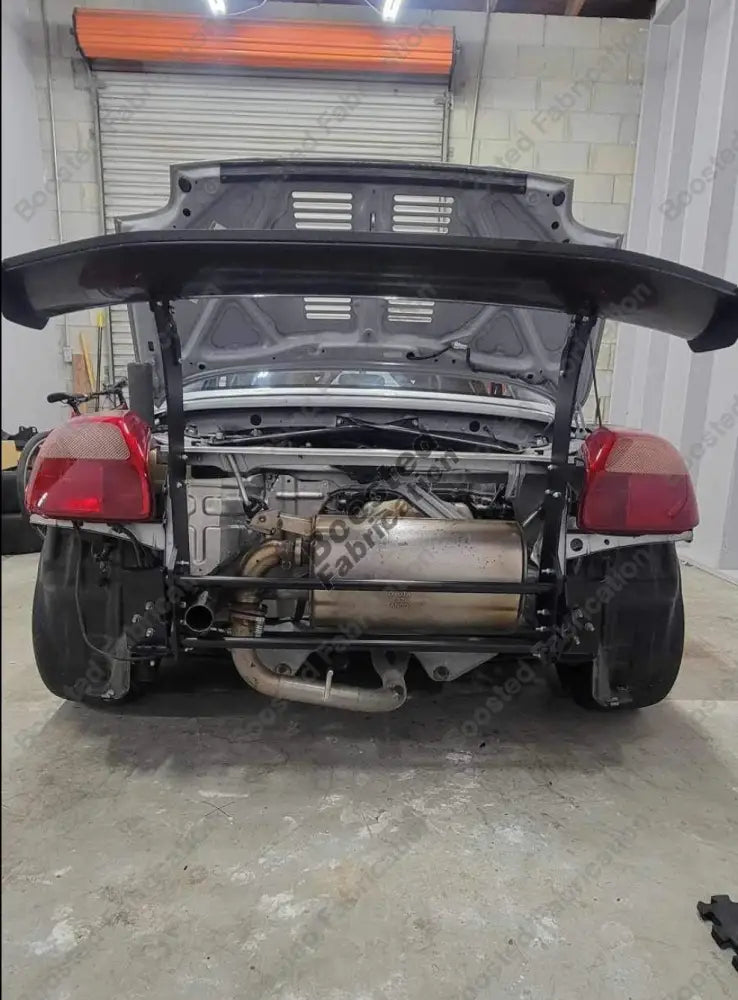

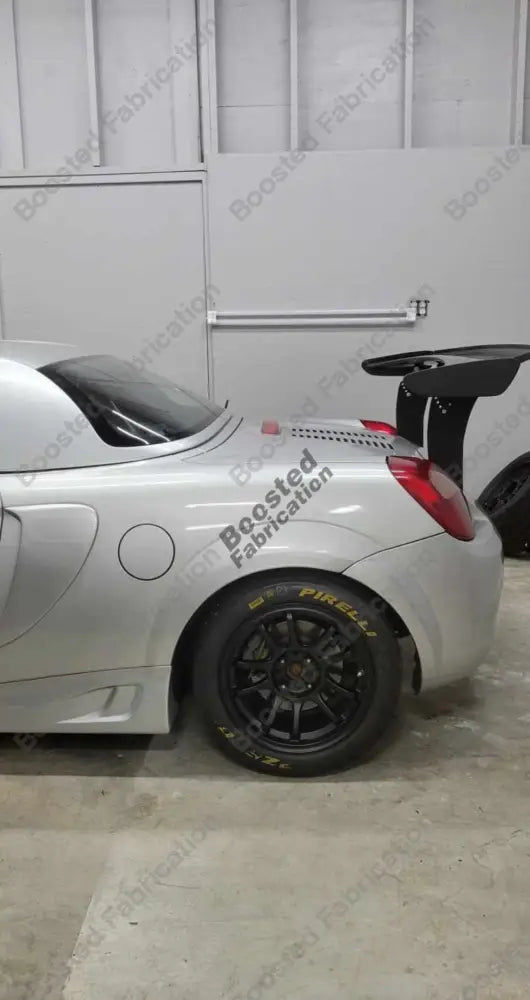

These swiveling brackets allow for almost any wing to be mounted to our pylon kits.

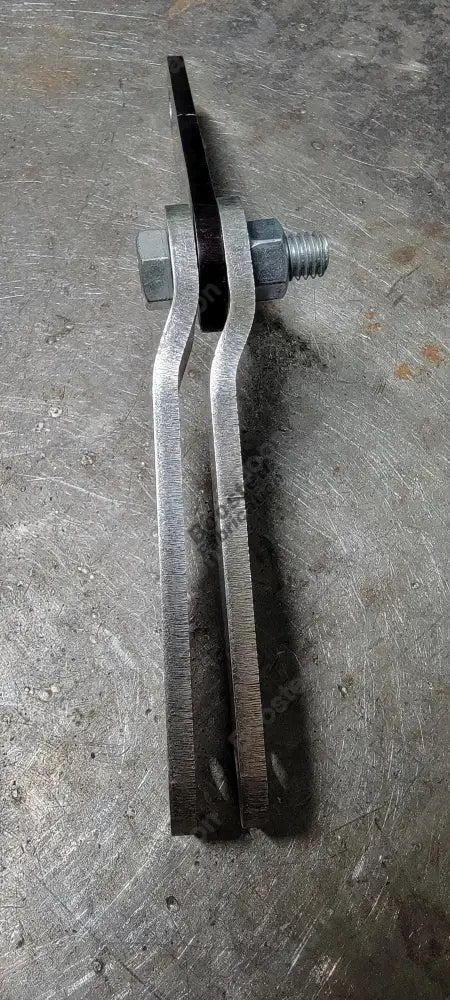

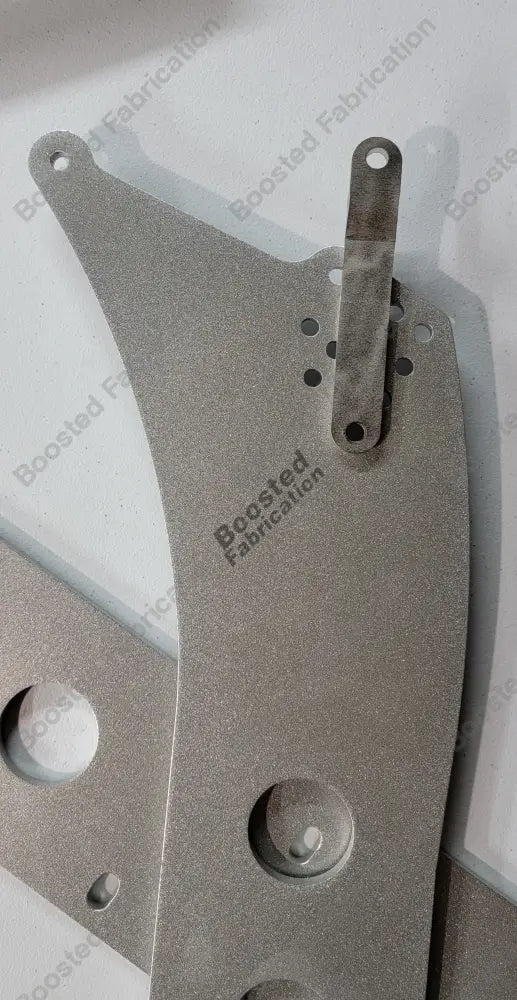

The black piece in the demonstration picture is to demonstrate wing mounting points.

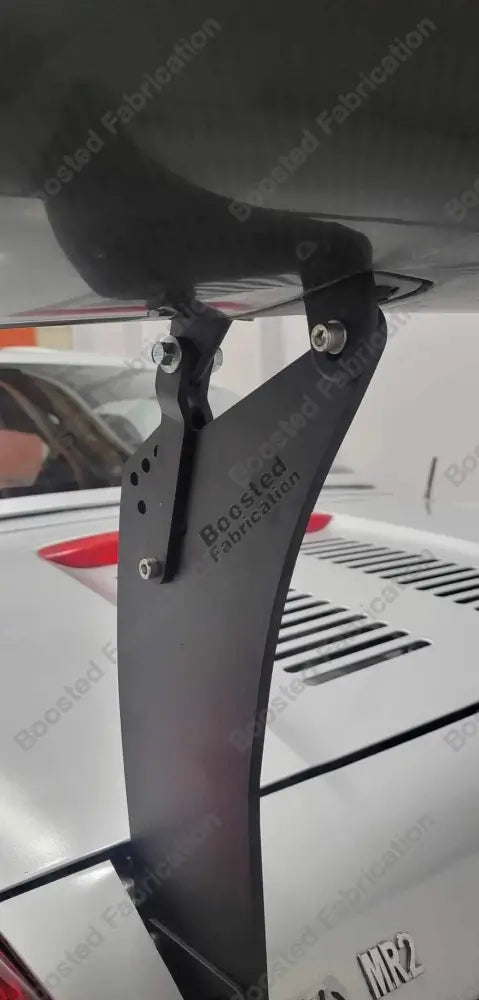

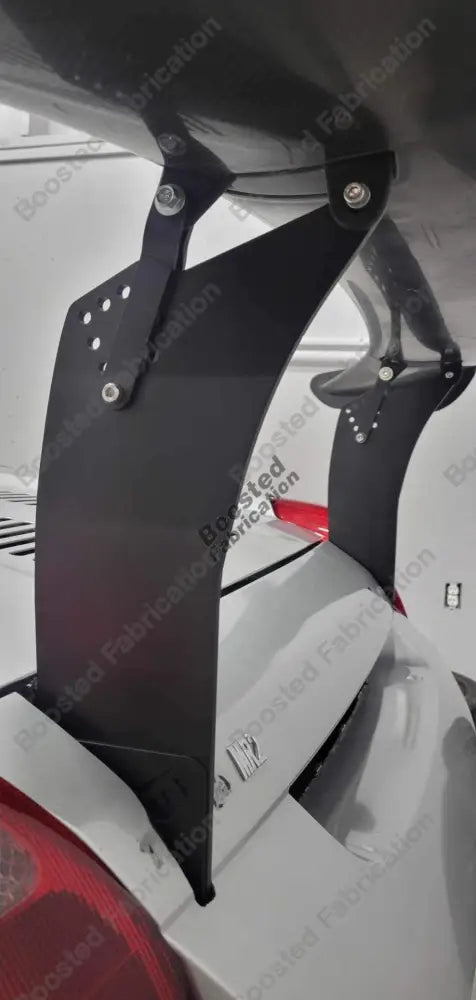

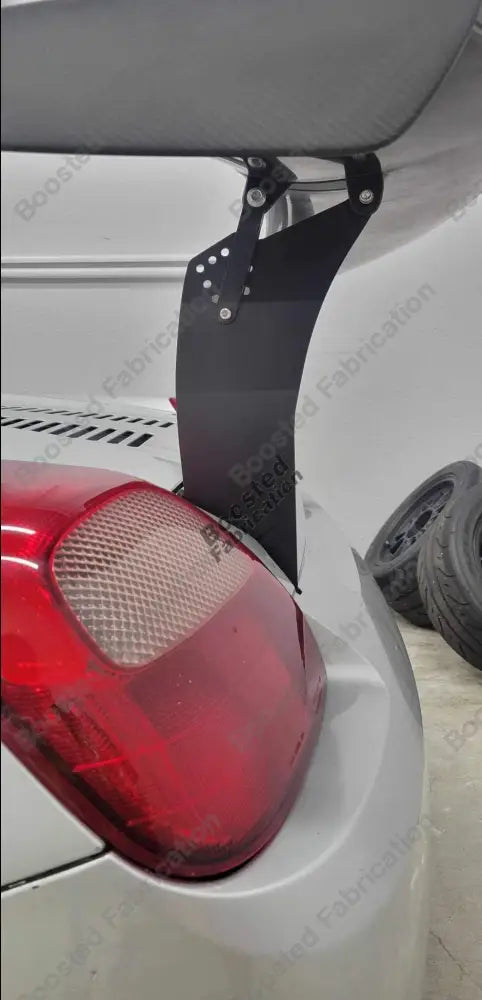

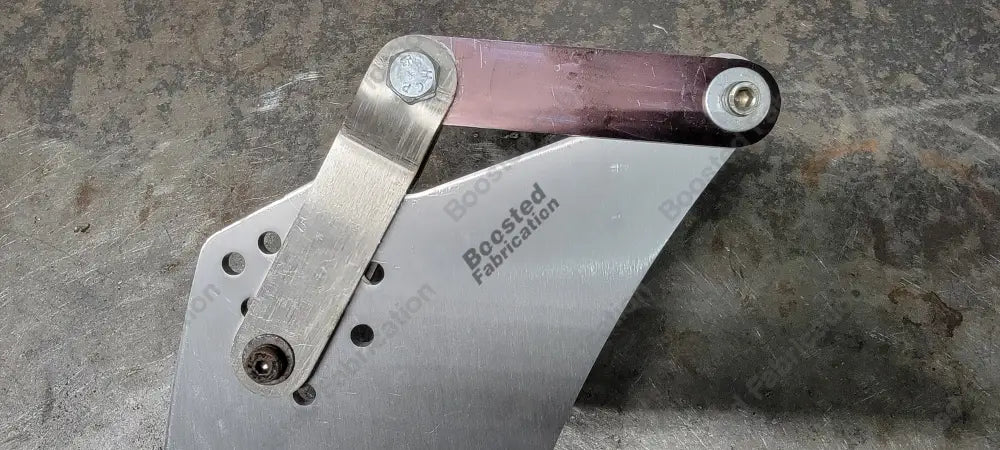

Use the front mounting hole of your wing to solid mount to the pylon. The rear mounting point will use these offset clamping brackets to hit adjustment holes on the pylons.
Depending on your wing mounting width, The upper chassis pylon supports could need new holes drilled in the chassis to support the pylons.
Depending on your exact wing setup and desired angle extra holes may also need to be drilled in the pylons. These universal mounting brackets are just to get you close and provide mounting. Fine tuning is up to you.

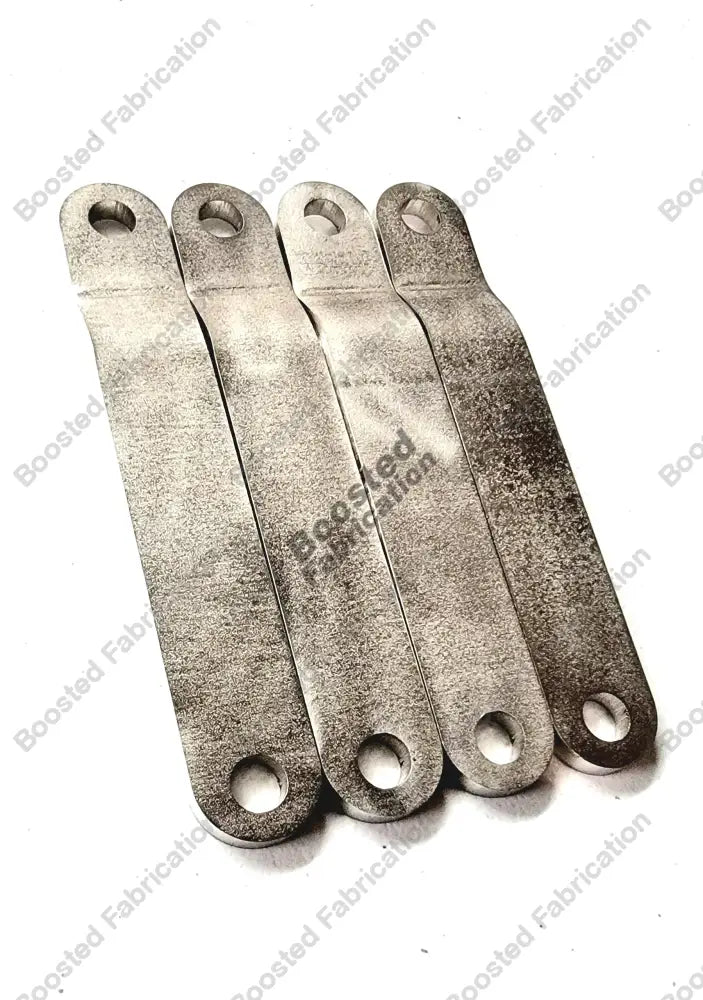

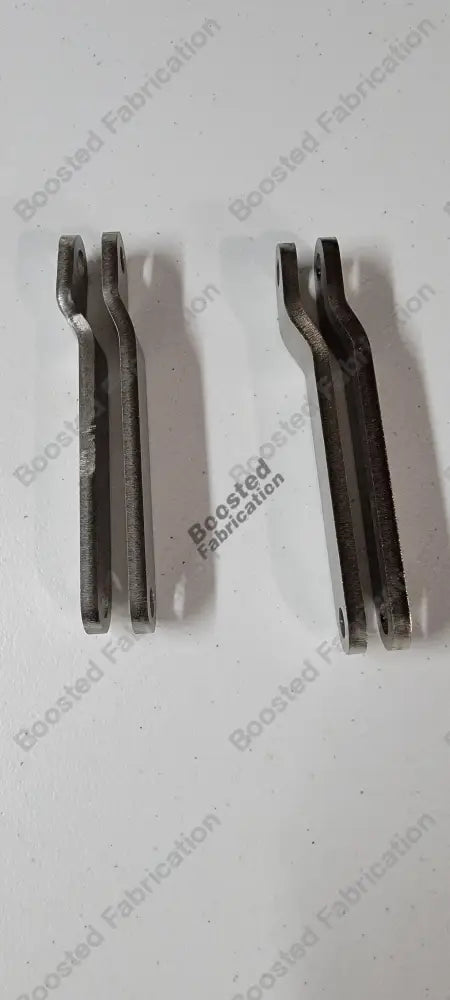

This kit includes (4) offset stainless steel mounting brackets.
