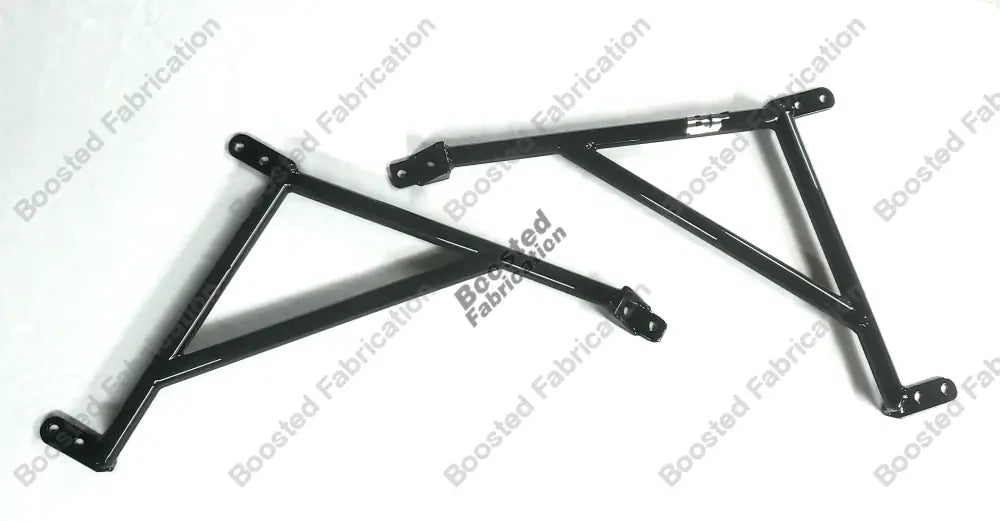

Fender Braces Strengthen The A-Pillar of the 3G Eclipse
-Reduce chassis flex
-Bolt in design
-Fully Tig Welded
-Light Weight
-Strengthens the front end of your car

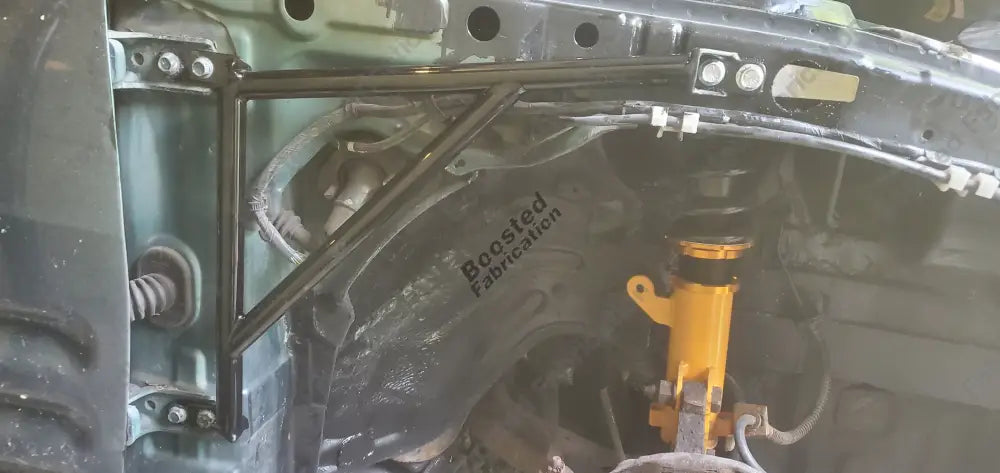

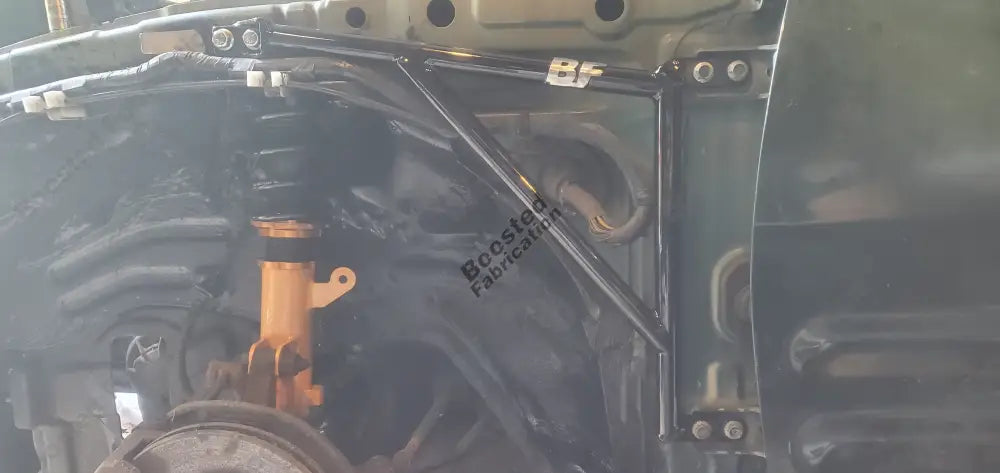

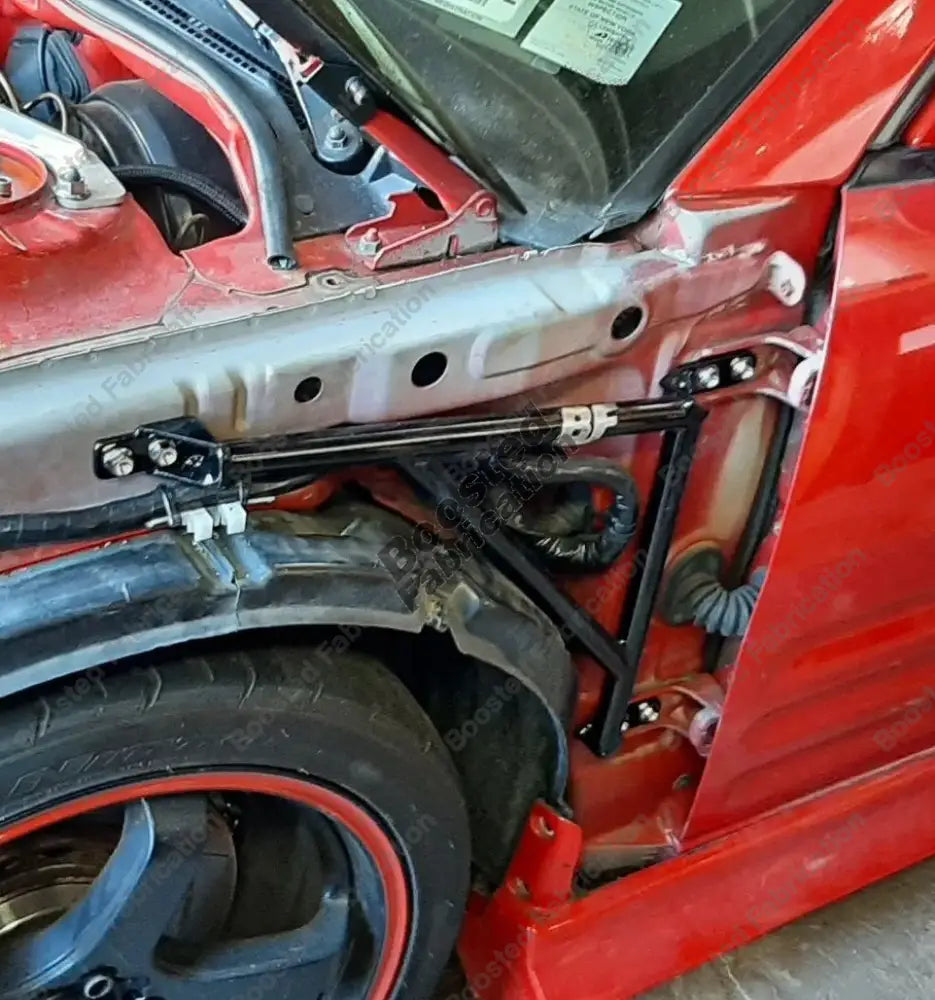

To install, bolt the fender braces to the door hinges.
Locate and draw holes where the third point of the fender braces touch the chassis.
Remove fender braces and drill the holes to 3/8 or 7/16
1.5 inches towards the front of the car drill a 1.5 hole with a hole saw to allow install of the sandwich plates provided. You may have to put a socket in the hole and give it a tap to make room for the sandwich plate it be inserted.
Insert sandwich plate and screw in the provided bolts through the fender braces and the chassis into the sandwich backing plate. the sandwich plate is stainless steel and will not rust.
It it recommended to put some paint on the chassis where the holes were drilled to prevent rust.
Tighten all bolts and re install fenders.
